Checkpoint SL 6 AXS Gravel Bike 2024
£108.00

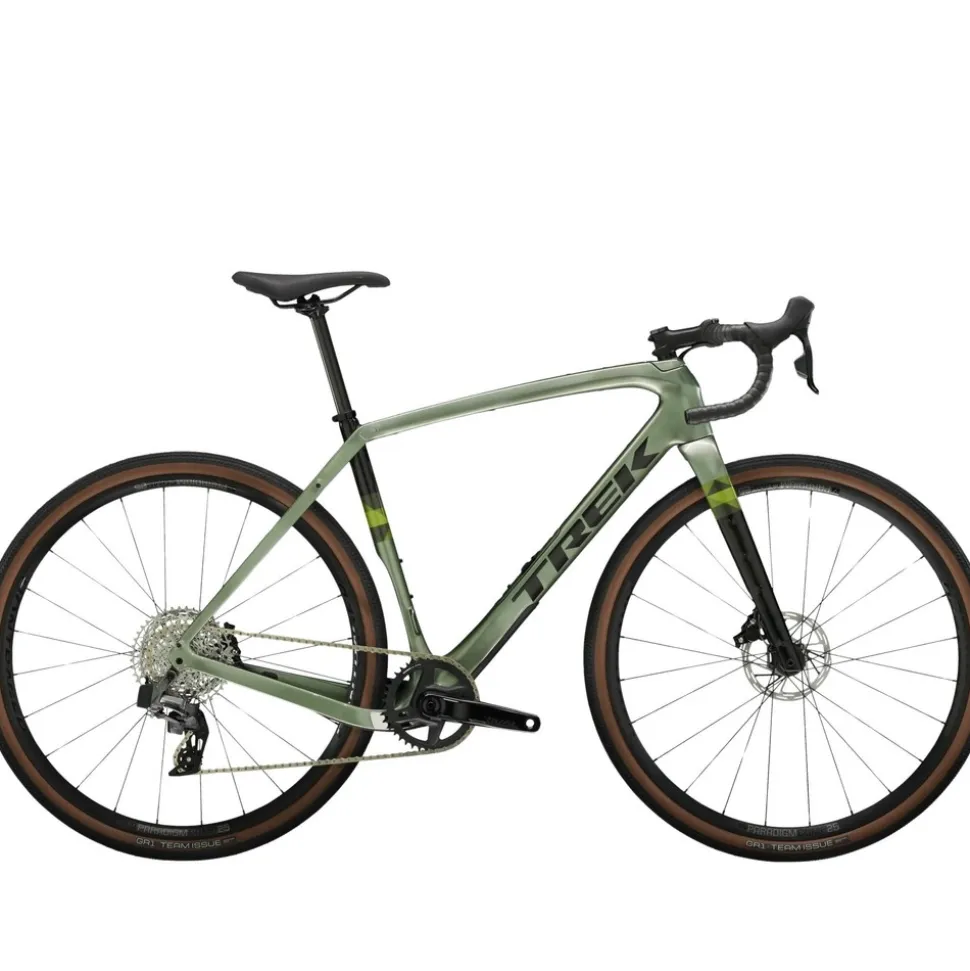

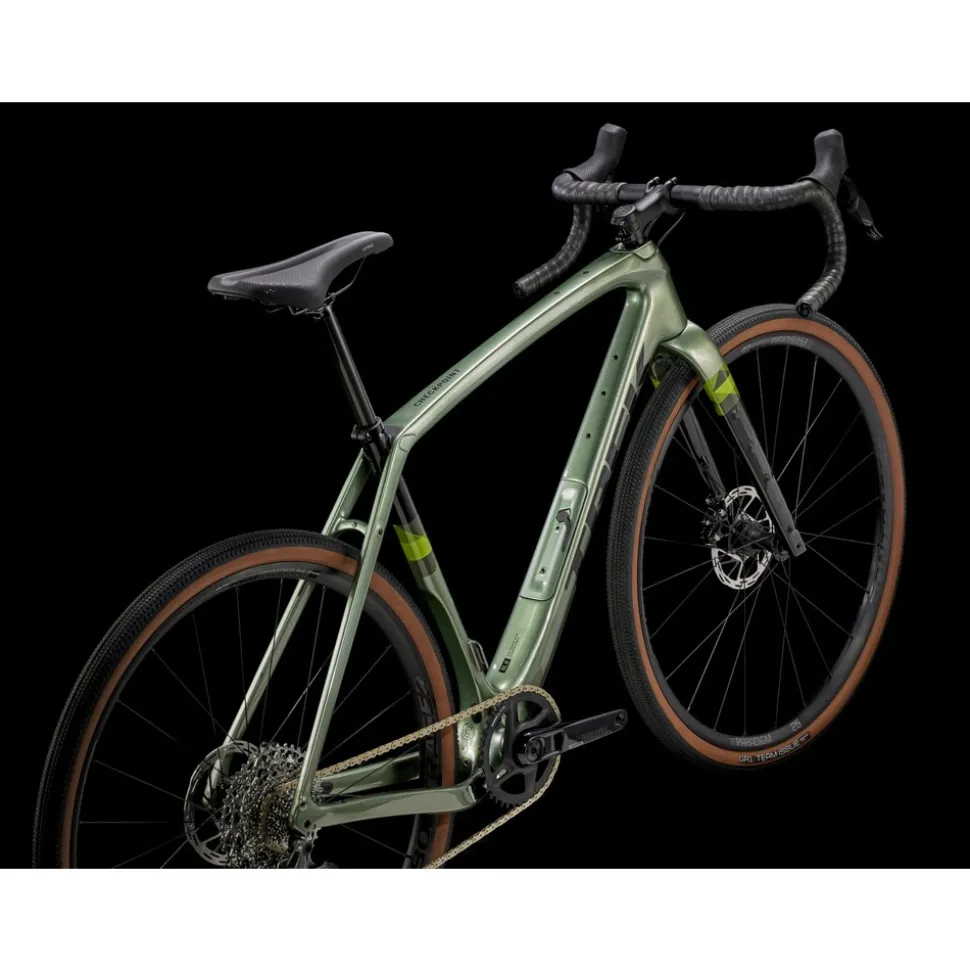

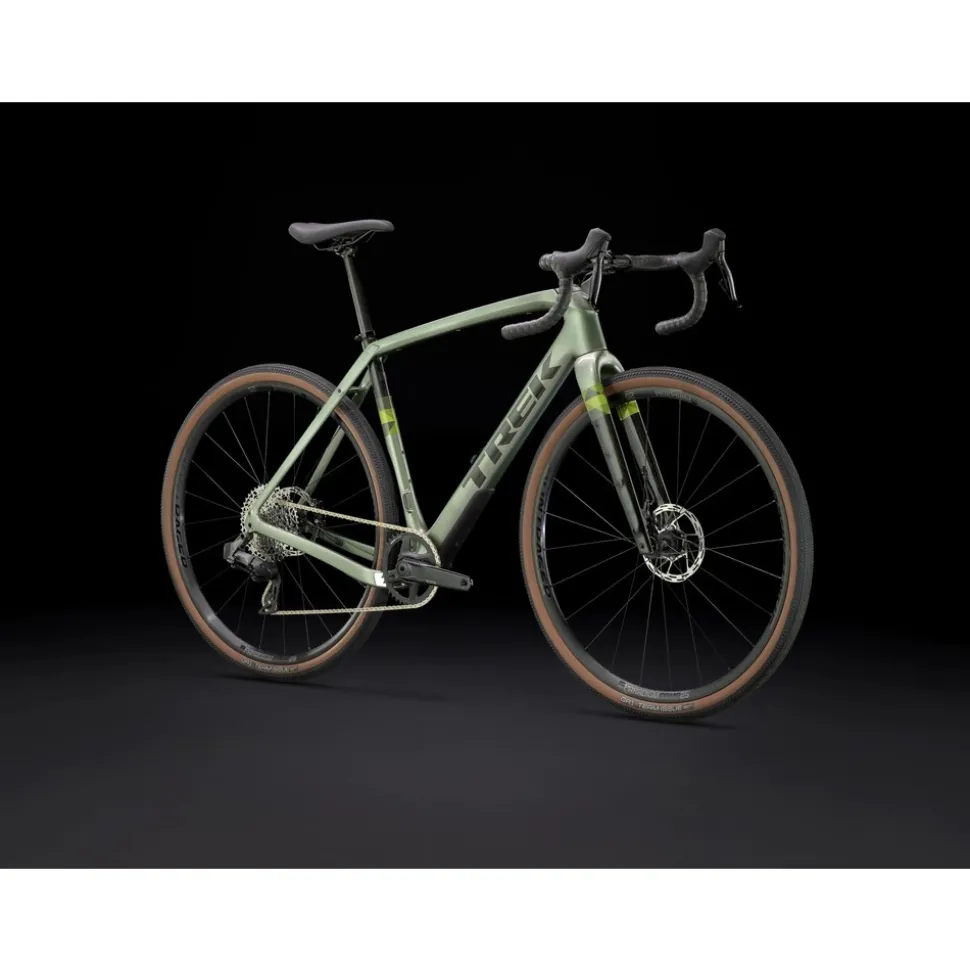

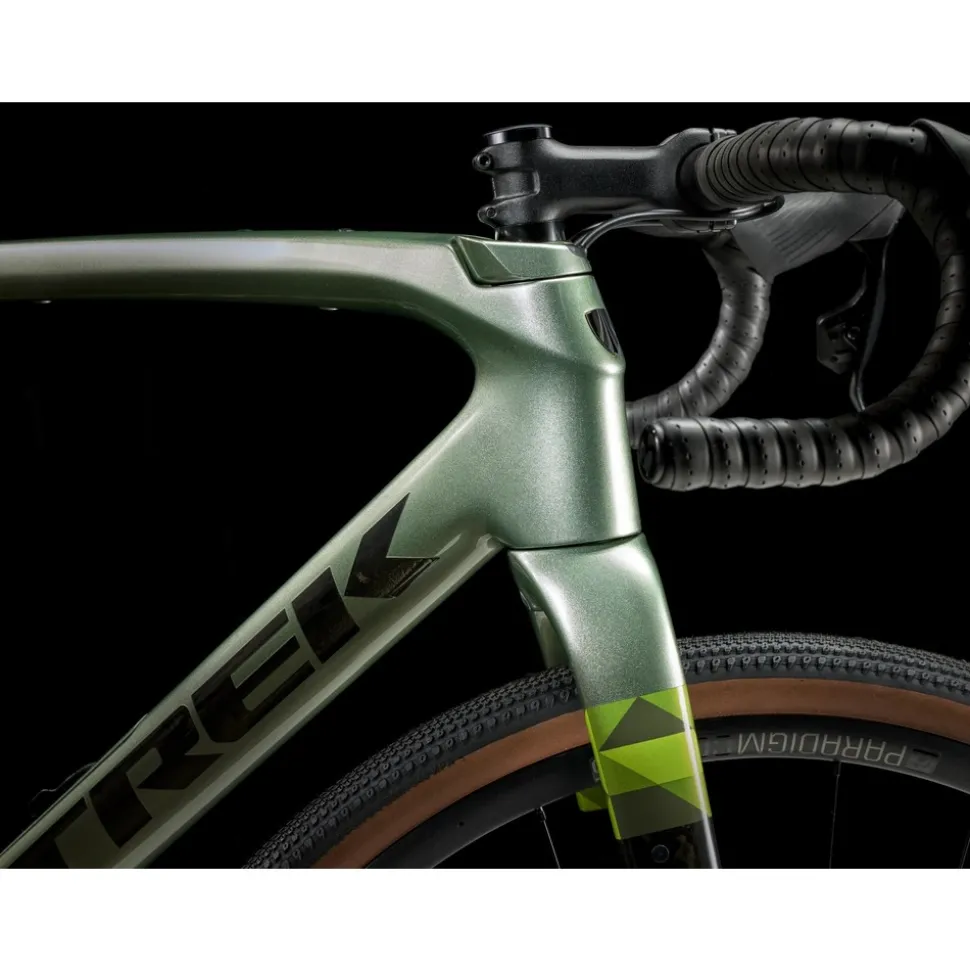

Trek Checkpoint SL 6 AXS Gravel Bike 2024
The Checkpoint SL 6 AXS is a high-performance carbon gravel bike designed for ambitious off-road adventures. Crafted from lightweight OCLV Carbon, it features gravel-smoothing IsoSpeed technology, a cutting-edge SRAM Rival XPLR AXS wireless electronic drivetrain, and a stable progressive geometry. With internal storage and versatile mounts for bikepacking gear, this bike is a powerhouse for serious gravel, dirt, or all-road enthusiasts.
Ideal for those with big gravel aspirations, the Checkpoint SL 6 AXS offers incredible speed, precision, and clean aesthetics with SRAM’s latest wireless electronic drivetrain. The 500 Series OCLV Carbon frame includes damped rear IsoSpeed, hidden cables, integrated frame bag mounts, and rack and mudguard mounts. The 1×12 SRAM Rival XPLR AXS drivetrain, carbon fork, and Paradigm Comp 25 wheels ensure top-notch performance, while the option to use up to 45 c tires enhances stability on diverse terrain. The bike’s versatility is further highlighted by the capability to accommodate a dropper post for descending.
In conclusion, this carbon gravel bike is tailored for extended rides, challenging terrains, and grand adventures. Its lightweight construction, advanced wireless electronic drivetrain, and thoughtful design make it a reliable choice for those seeking speed, comfort, and durability on rugged roads.
Technical Specification

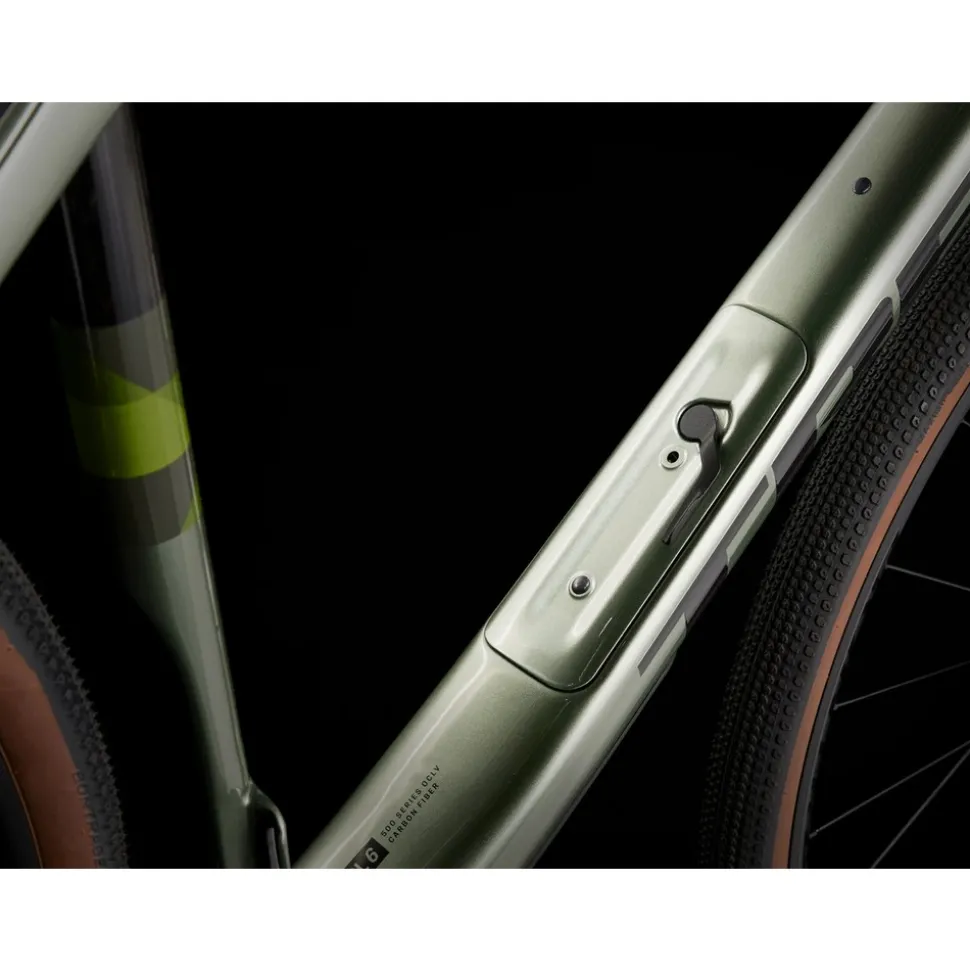

| Frame | 500 Series OCLV Carbon, IsoSpeed, internal cable routing, downtube storage door, 3S chain keeper, T47 BB, rack and mudguard mounts, integrated frame bag mounts, flat-mount disc, dropper post compatible, 142×12 mm thru axle |

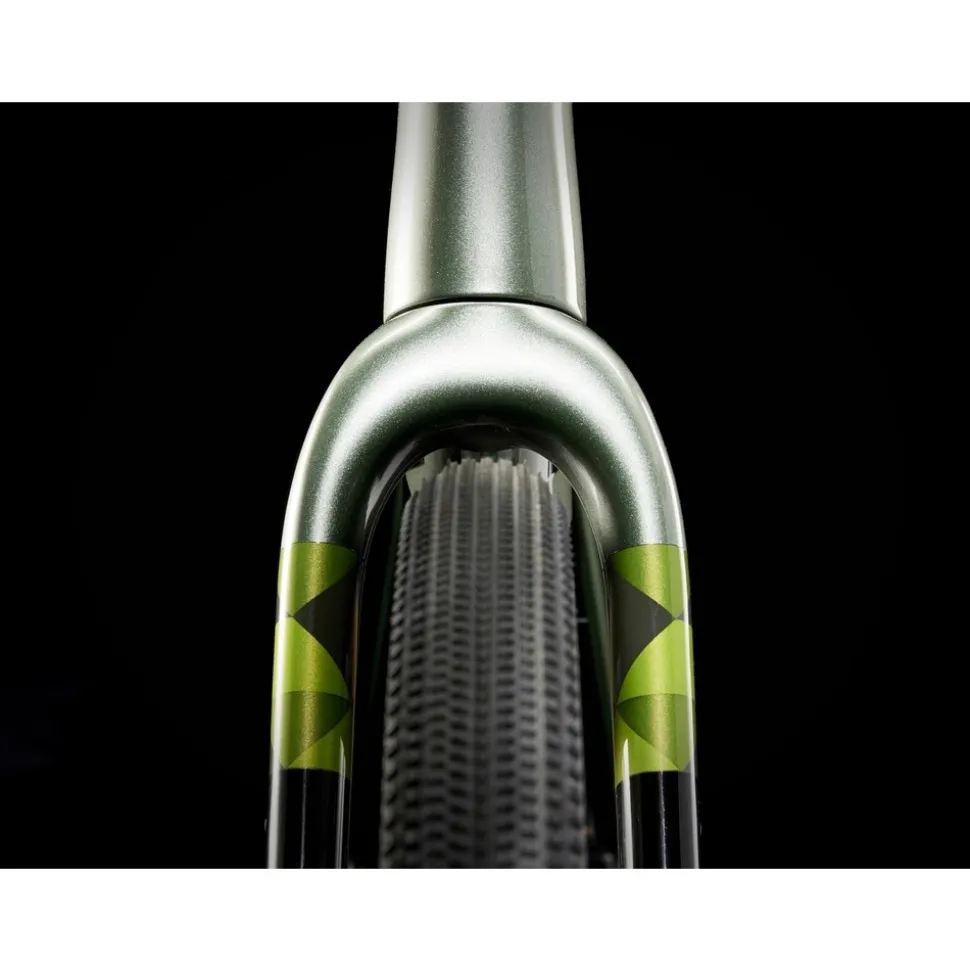

| Fork | Trek Checkpoint, full carbon, tapered carbon steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |
| Battery | SRAM eTap battery pack (with charger) |
| Shifter | SRAM Rival eTap AXS, 12-speed |

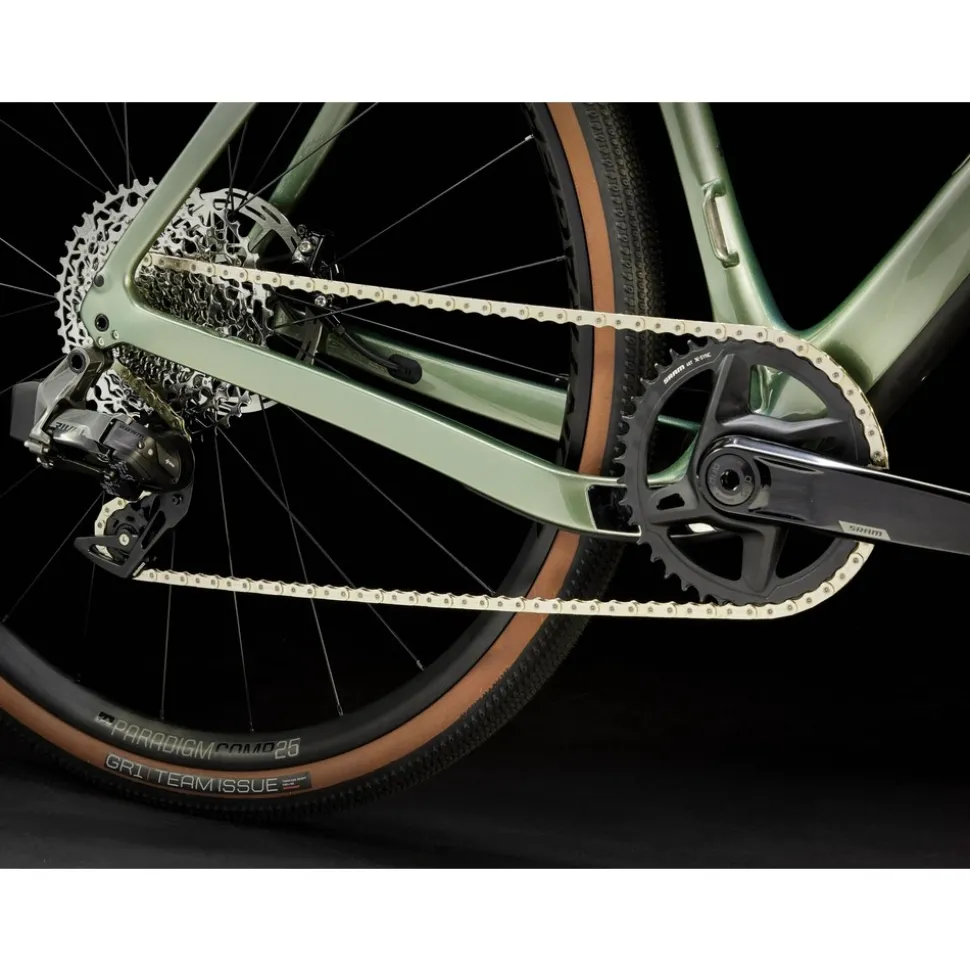

| Rear derailleur | SRAM Rival XPLR eTap AXS, 44T max cog |

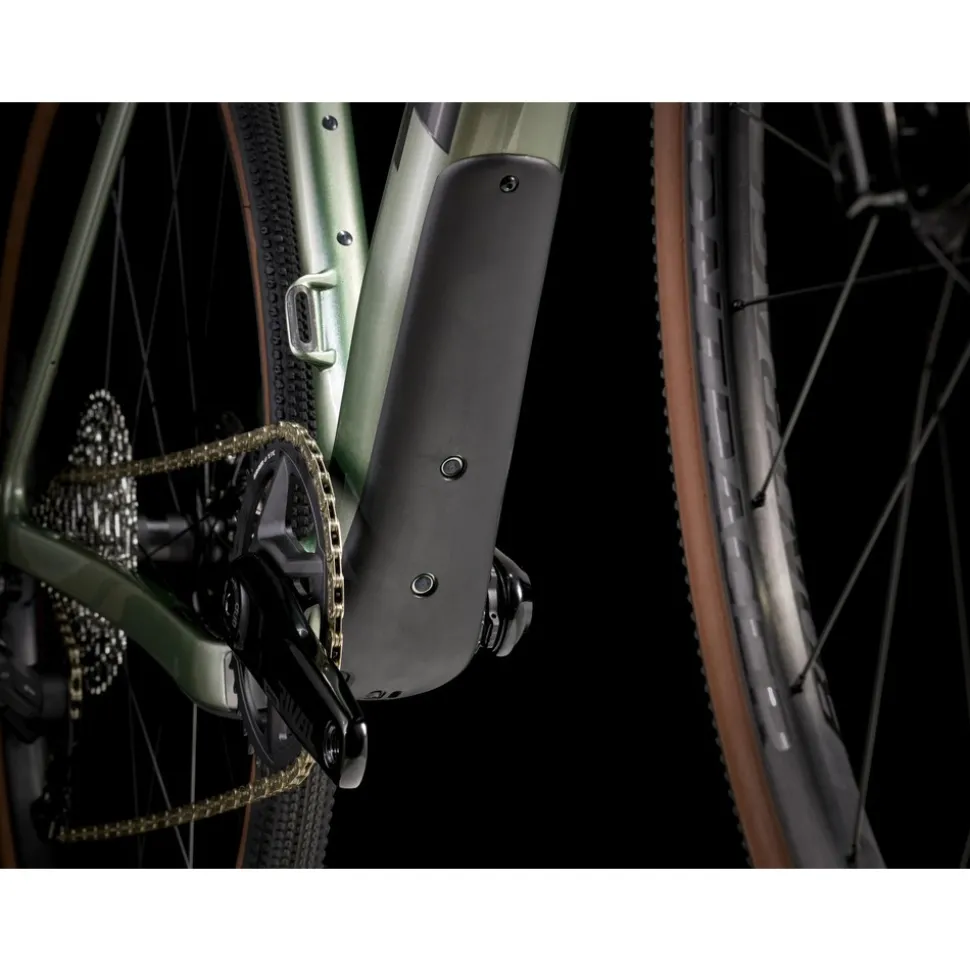

| Crank | SRAM Rival, 40T, DUB Wide |
| Bottom bracket | SRAM DUB, T47 threaded, internal bearing |
| Cassette | SRAM XG-1251, 10-44, 12-speed |
| Chain | SRAM Rival, 12 speed |
| Max. chainring size | 1x |
| Wheel front | Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100×12 mm thru axle |
| Wheel rear | Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, SRAM XD-R 12-speed freehub, 142×12 thru axle |
| Skewer front | Bontrager Switch thru axle, removable lever |
| Skewer rear | Bontrager Switch thru-axle, removable lever |
| Tyre | Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700 x 40 c |
| Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim strip | Bontrager TLR |
| Saddle | Bontrager Verse Comp, steel rails |
| Seatpost | Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length |

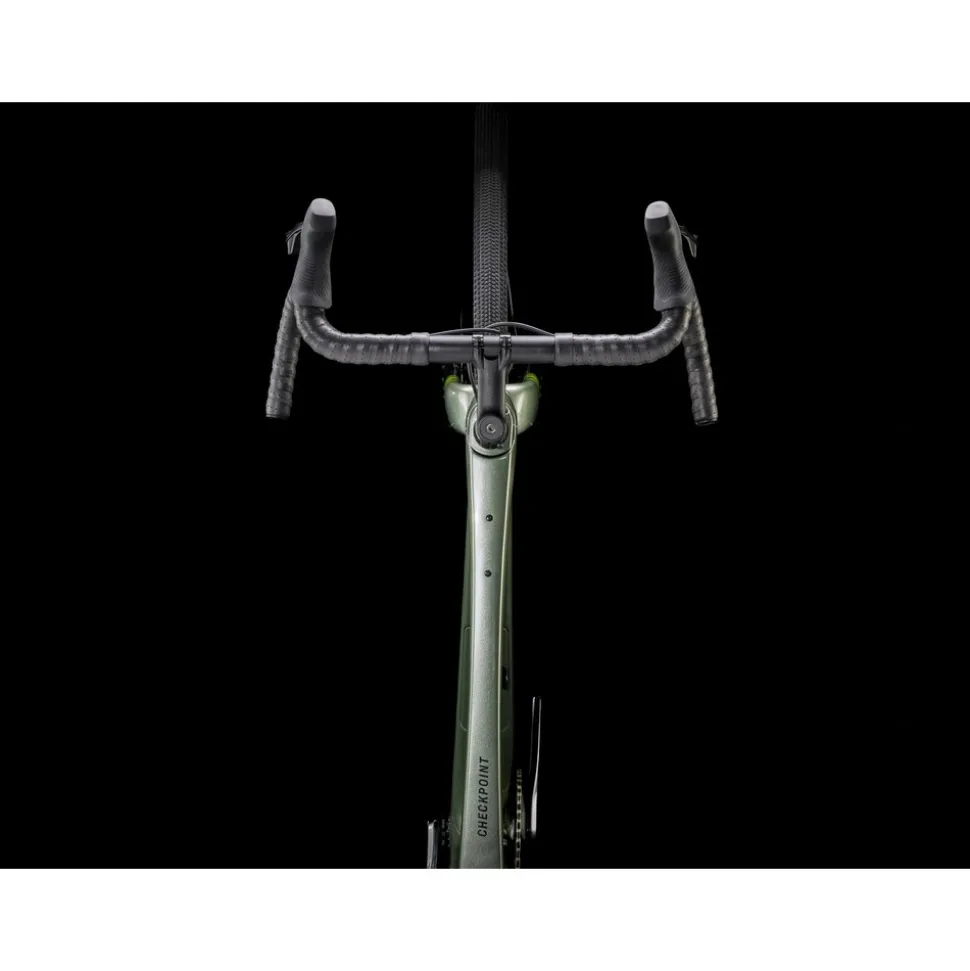

| Handlebar | Bontrager Elite Gravel |
| Handlebar tape | Bontrager Supertack Perf tape |
| Stem | Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree |
| Brake | SRAM Rival hydraulic disc |
| Brake rotor | SRAM Paceline, rounded, CentreLock, 160 mm |
| Rotor size | Max brake rotor sizes |
| Bag | Bontrager BITS Internal Frame Storage Bag |
| Size | 49cm, 52cm, 54cm, 56cm, 58cm, 61cm |
|---|---|
| Color | Light Green |
